Product Description

12mm Mirco High Torque DC Gear Motor

·  Model:GM12-N20VA

·  Diameter:12mm

·  Length:24,27mm

·  Brand Name:HQ motor

·  Model Number:GM12-N20VA

·  Usage:BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Robot DIY

·  Type:GEAR MOTOR

·  Torque:0.05~0.5kg.cm

·  Construction:Permanent Magnet

·  Commutation:Brush

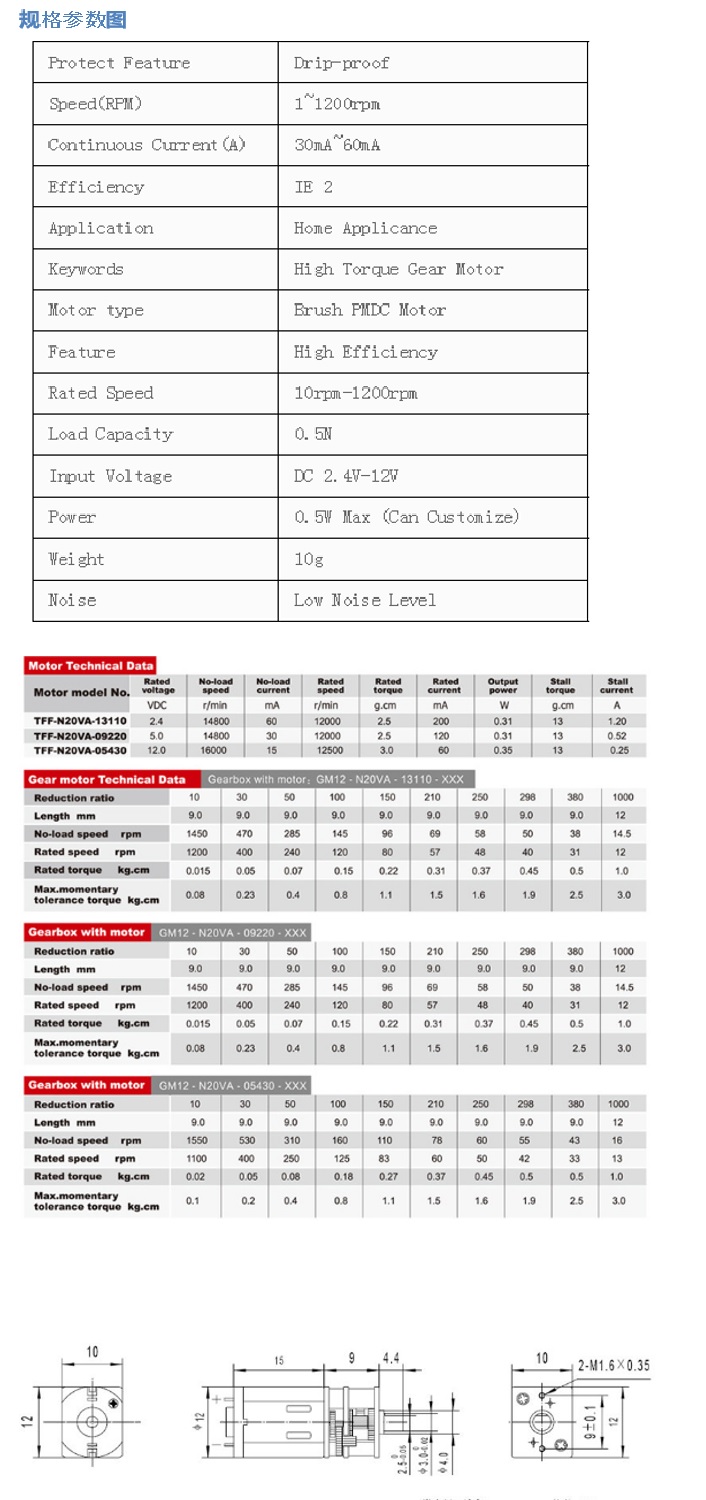

Parameter

Characters

1.Small size dc gear motor with low speed and big torque

2.12mm gear motor provide 0.1Nm torque and more reliable

3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder, 3ppr

5.Reduction Ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、1000

Parameters

1.Wide range of DC gear motors

Our designs and manufactures a wide range of high-quality, and cost-effective, Ø10 -Ø60 mm DC motors in a range of technologies. All types can be highly customised for a wide range of applications.

2.Three main DC Gear motor technologies

Our three main DC gear motor solutions use iron core, coreless and brushless technologies with two gearboxes, spur and planetary, in a variety of materials.

3.Customised for your application

Your application is unique so we expect you to need some custom features or specific performance. Work with our application engineers to design the perfect solution.
