Product Description

0.9Deg Nema 14 Stepper Motor

PRODUCT DETAILS

Model: 2 Phase Hybrid / Biplor Nema 14 Stepper Motor 35x35mm -35HM(0.9 degree)

NEMA 14 stepper motor is a stepper motor with a 35x35mm faceplate. Its size is only a coarse indication of its power. The NEMA 14 is a smaller and neater motor that was used on the Mendel prototype. Compared to a NEMA 17 it needs less space and typically weights less, so it's often seen in small printers, like the Huxley.

A NEMA14 Stepper Motor is ideal for use in driving a Lead Screw assembly, Gear train, or Belt and Pulley mechanism. NEMA 14 Stepping Motors for sale are available with a bipolar configuration as standard, and are available in 0.23A, 0.5A, and 1A varieties. Stepper Motors of this type are ideal for small-scale, high-precision applications. We can also customize Nema 14 Stepper Motor's winding to perfectly match voltage, current, and maximum operating speed to meet your requirements.

Product Name: Nema 14 Stepper Motor

Step Angle: 0.9 Degree

Size: 35x35mm Step Motor

Current / Phase: 0.5A / 1A

Holding Torque: 1000g.cm - 1500g.cm

Leads No.: 4leads

Motor Length: 27mm / 34mm / 40mm

Product Type: 2 Phase Biplor Stepping Motor

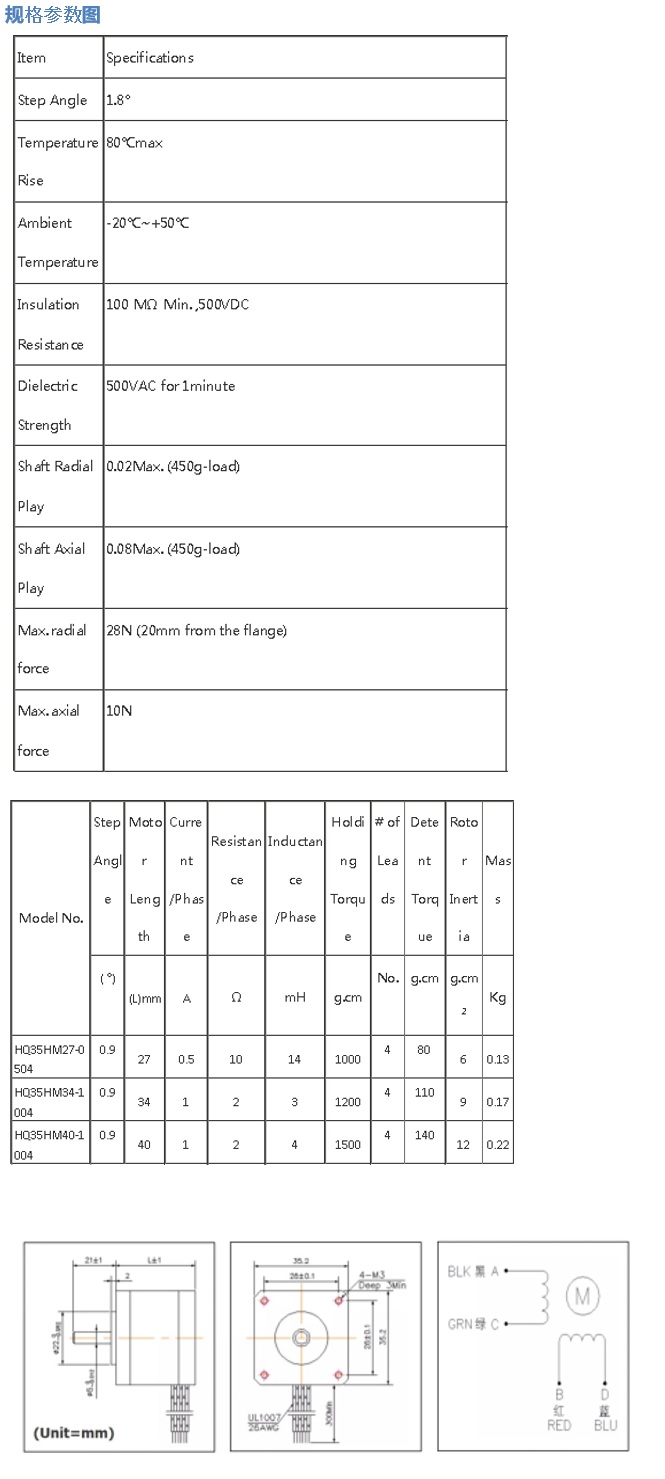

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Product Features:

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
