220 Stepper Motor Driver

PRODUCT DETAILS

0220 Stepper Motor Driver

Product Description:

Main features:

Product Type: Nema8 - Nema17 Stepper Motor

Feature summary：High start speed; High hording torque under high speed; High performance, low price

Place of Origin：china

Support Motor: Nema8 - Nema17 Stepper Motor

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

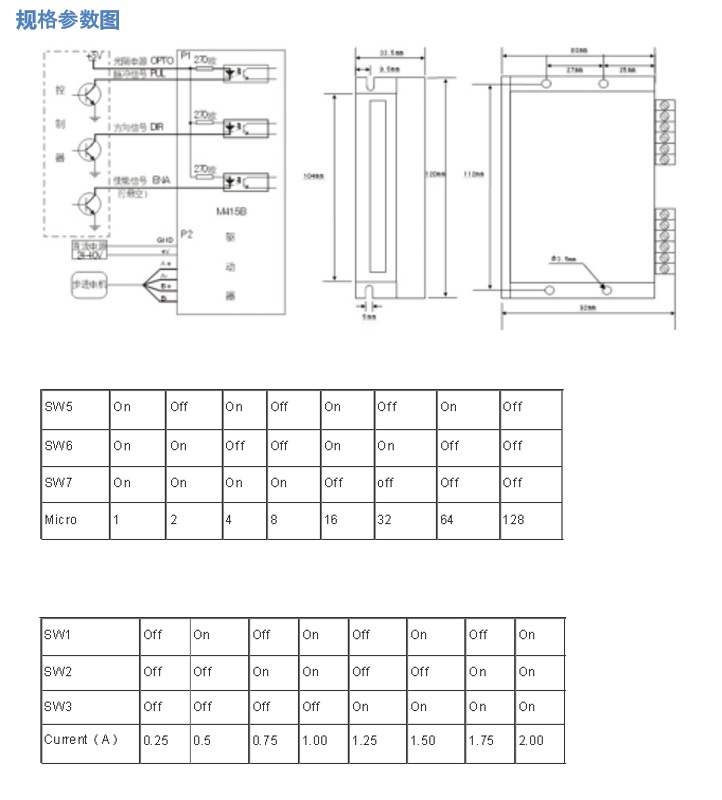

Mechanical Size:

Overview:

1. DC power input type:12V~36VDC

2.Output current:0.25A-2.0A

Mircostepping:1(1.8º)、1/2、1/4、1/8、1/16、1/32、1/64、1/128

Pulse/rev: 200,400,800,1600,3200,6400,12800,25600

3.Dimensions：96mm×60mm×24.5mm

4.Weight：I/O Ports：

1.GND,：VDC+: it input DC power

Note:

1.Must guard against exceeding 36V, so as not to damage the module

2.A+、A-：Stepping motor one winding

3.B+、B-：Stepping motor other winding

4.PUL ：Stepping pulse input

5.DIR：Stepping motor direction input

6.VCC：power supply port for inside optical coupling

7.EN: motor free

NOTE：

1. When ambient temperature is high or working current over 1.05A,  fix the module on big metal shell , or use axle flows fan dispels the heat, to make the module run reliably for a long time.

2. Half current automatically: if control machine not send out signal  in half second, driver enter half current state of automatically for electricity saving, the phase current of the winding of the electric

Switch Choice:

1、Microstepping choice:

1、Current choice：

Customized Design:

If this product do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
