Product Description

0.9Deg Nema 23 Stepper Motor

PRODUCT DETAILS

Model: 57BYG Nema 23 2 Phase Hybrid / Biplor Stepper Motor 57x57mm -57HM (0.9 degree)

Product Name: 0.9degree 57mm Nema 23 Stepper Motor

Model Name: 57BYGH Step motor

Model: Stepper Motor Nema 23

Size: 57x57mm Stepping Motor

Current / Phase: 1A / 2A / 2.8A

Holding Torque: 0.39N.m ~ 1.8N.m

Leads No.: 4 or 6leads

Motor Length: 41mm / 51mm / 56mm / 76mm

Product Type: 2 Phase Biplor Stepper Motor

Type: Hybrid Step Motor

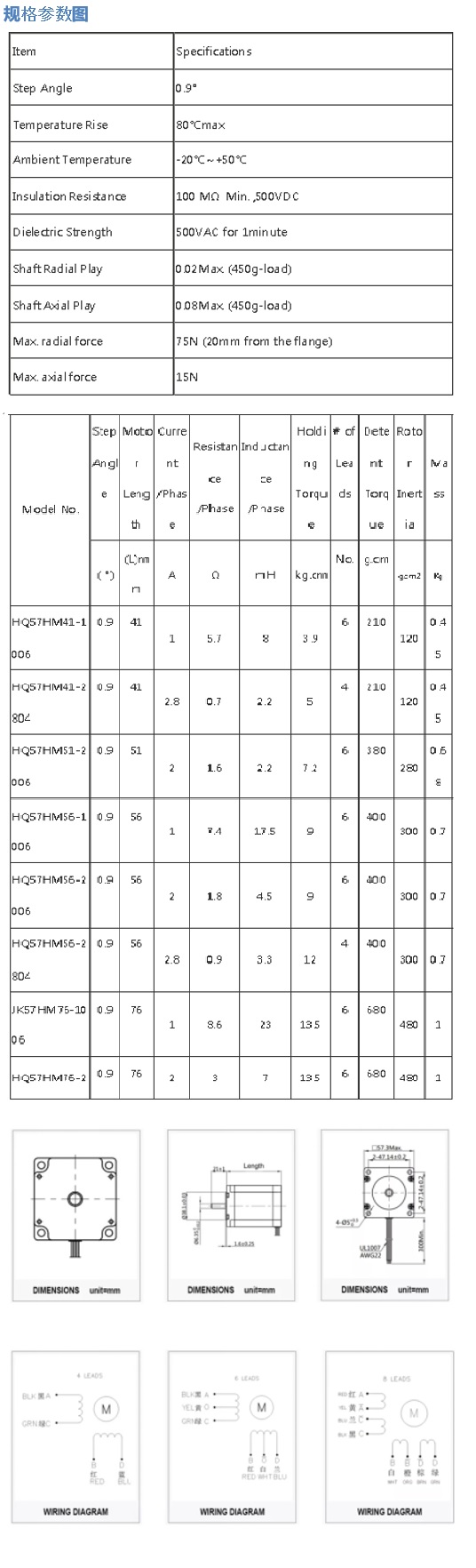

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Product Parameters:

Product Type: Nema 23 Stepper Motor

Size：57x57mm

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

APPLICATION：HQMOTOR stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
