1.2Deg Nema 52 Stepper Motor

PRODUCT DETAILS

Model: NEMA52 Stepper motor-130H3P (1.2 degree)

General Specification:

Step Accuracy ------------------------------ ±5%

Resistance Accuracy ----------------------- ±10%

Inductance Accuracy ---------------------- ±20%

Temperature Rise -------------------------- 80°C MAX.

Ambient Temperature Range ------------- -20°C~ +50°C

Storage Temperature Range ------------- -30°C~ +60°C

Insulation Resistance ---------------------- 100M Ω MIN. 500V DC

Dielectric Strength ------------------------- 500V AC 1min

Radial Play --------------------------------- 0.02mm MAX. (450g Load)

End Play ------------------------------------ 0.08mm MAX. (450g Load)

Max. radial force --------------------------- 220N

Max. axial force ---------------------------- 60N

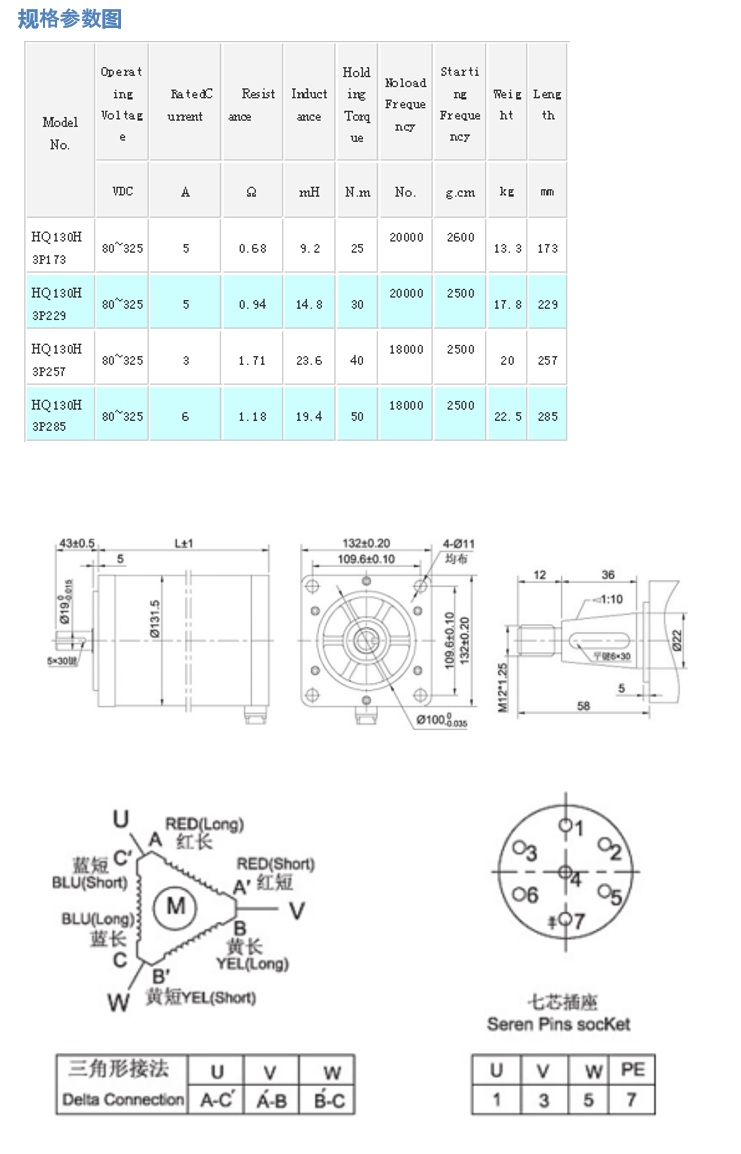

Electrical Specification:

Dimensions:(Unit=mm)Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

3 Phase stepper motor driver Model:  3DM2207
