Product Description

Nema 17 Ball Screw Stepper Motor

PRODUCT DETAILS

Model: Nema 17 Ball Screw Stepper Motor Linear Actuator With Lead Screw-28HS (1.8 degree)

Lead screws are often used in stepper motor actuators, for a cost-effect, easy-to-use linear motion solution. But stepper motors can also be used to drive ball screws.

A lead screw is sometimes referred to as a “power screw” or a “translation screw”. They are used within motion control devices to transform rotary or turning movements into linear movements.

A lead screw turns rotary motion into linear motion combining a screw and a nut where the screw thread is in direct contact with the nut thread. In the case of roller screws, the rollers rather than the nut are in direct contact with the screw thread offering greater efficiency.

1、General Specification of Nema 17 Ball Screw Stepper Motor:

2、Product Parameters of 42BYGH Lead Screw Stepper Motor Linear Actuators:

Product Type: Nema 17 42mm Stepper Motor with Ball Screw

Size：42x42mm

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

APPLICATION：HQMOTOR linear stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small linear actuator stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.

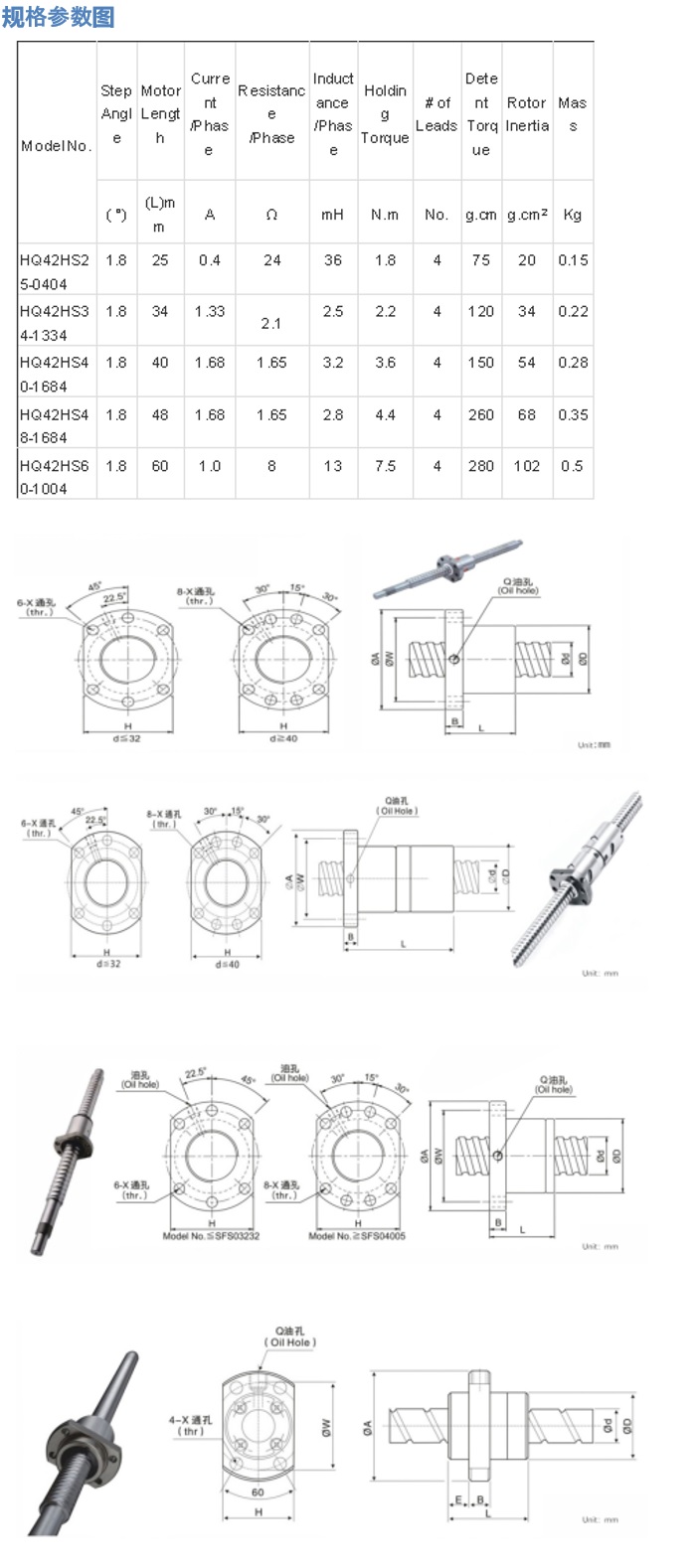

3、Drawing of Ball Screw for Stepper Motor:

(1)、SFU Single Nut Series:

(2)、DFU Double Nut Series:

(3)、SFS Quiet Single Nut Series:

(4)、SFE Big Lead Single Nut Series:

4、Other Stepping Motors Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
