Product Description

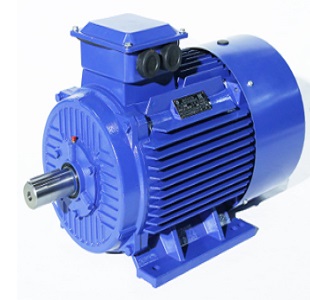

GOST Certification of Russian Standard Three-phase Asynchronous Motor

ANP series three-phase electrical motors are totally enclosed and fan-cooling. The power rating and installation size conform to GOST Standard, 220v/380v(56-112) , 380/660v (132-355) rated voltage with 50Hz rated frequency, F grade insulation, IP54/P5 degree of covering protection, C411 cooling method. With high efficiency, energy-saving,owηoise, little vibration reliable running, it is widely used as drivers for various kind of machines,such as pumps, blower, conveyer, mixer, agriculture machinery and mine machinery etc.

Type: GOST Russia Standard АИР Series Three Phase Asynchronous Motor

Efficiency level: High efficiency energy-saving GOST АИР series motor

Frame size: 63~355 frame

Rated output: 0.12~375kW, 0.16~500HP

Rated voltage: 220/380V, 380/660V, 400/690V

No. of poles: 2, 4, 6, 8, 10 Pole

Rated frequency (speed): Synchronous speed 3000/1500/1000/750/600 r/min

Mounting methods: B3, B35, B5, V1

Material of housing: Cast iron

Insulation class: F (155℃)

Temp. rising: ΔT=80°K (B class)

Protection class: IP44, IP54, IP55

Cooling: IC411 Totally-enclosed, fan-cooled

Bearing type: Roller/Ball bearing

Working duty: S1 (Continuous)

Service factor: 1.00

Ambient temperature: -20°C ~ 40°C

Altitude: ≦1000 m.a.s.l

Ambient humidity: ≦90%

Lubricating: With grease system

Grounding lug: on the frame and terminal box

Metric Threaded Cable Entries on the Terminal Box

Customized frame size/power

Materiel of frame: Fabricated in welded steel plate frame

Shaft: Special dimensions, double shaft end, tapered, hollow as per request

Inverter/converter VFD application

Service Factor: 1.15 or above

Insulation Class: H (180℃)

Ambient temperature: Above 40 °C (on request)

Altitude: ＞1000M (on request)

Bearing: SKF, FAG brand

Grease lubricated bearings

Space heaters

Thermostats RTD

Thermal protection PTC

Temperature detector PT100

NDE or both DE and NDE bearing are electrically insulated

Grounding brush on drive end bearing for all frames when driven by frequency converter (except for classified area)

Special Winding, Voltage, Frequency

Cooling: IC416 Forced cooling by independent axial fan

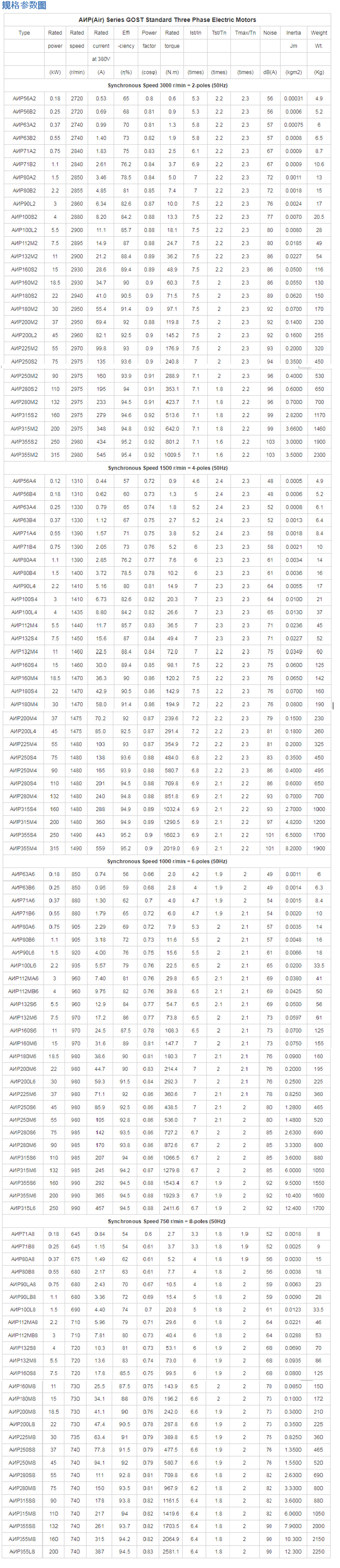

Parameters Table
