Product Description

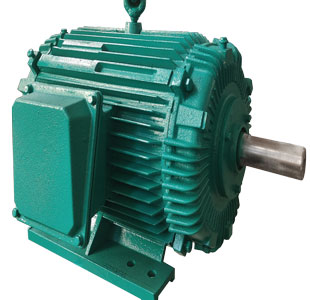

.1. PRODUCT INTRODUCTION OF NEMA PREMIUM ELECTRIC MOTOR

NEMA Premium series are 3 phase asynchronous motors with totally enclosed fan cooled, are ac motors ,INDUCTION MOTORs and industrial motors. The premium efficiency motors are developed by ourselves independently according to NEMA Premium Efficiency of NEMA EPACT. The output rated power and mounting dimensions of the motors are perfectly in accordance with NEMA. NEMA premium motors is reasonable structure, small vibration and low noise.

NEMA Premium series 3 phase asynchronous motors can be widely used in blowers, ventilators, pumps, machine tools, compressor, reducers, packing machines, transportation machinery, mining equipment, construction equipment and other machines which can operate with full load for a long time, the electrical motors can save the considerable electric energy, it is advantageous to protect the environment.

2. TECHNICAL FEATURES OF ELECTRIC MOTOR

1. AC 3 phase 60Hz 208-230/460V & 460V & 575V (Single Voltage only for 250HP and above)

2. NEMA Design B (Design A is available)

3. Efficiency Level:

1~200HP 2 Pole, 4 Pole, 6 Pole Premium efficiency motors meet NEMA-MG1-Table 12-12

250~500HP 2 Pole, 4 Pole, 6 Pole Epact efficiency motors meet NEMA-MG1-Table 12-11

3~350HP 8 Pole Epact efficiency motors meet NEMA-MG1-Table 12-11

JM/JP 2 Pole, 4 Pole, 6 Pole Premium efficiency motors meet NEMA-MG1-Table 12-12

4. Totally enclosed fan cooled (TEFC, IP55)

5. Service factor: 1.15

6. Class B temperature rise, Class F insulation with phenolic alkyd. VPI varnished with double times.

7. Oversize conduit box, rotatable in 90 degree.

8. Heavy duty construction, cast iron frame, bracket and conduit box.

9. Aluminum die cast squirrel cage rotor construction.

10. Bi-directional rotation.

11. Ambient temperature: 40 degree C.

Note: the inquiry or order need to indicate the electric motor model(including frame size, No. of poles, power, voltage) ,Mounting method, terminal box location(top/side).

If customers have special request for voltage, and other, can be mentioned in the inquiry or order.

3. MOUNTING OF ELECTRICAL MOTOR

T,TS - The motors normally mounted with feet.

TC – The motors with (or without) feet and with C flange.
