Product Description

The three-phase asynchronous AC motor（IE2） of the YE2 series is in line with the third efficiency standard(IE2) in the provisions of GB 18613-2012 the energy efficiency limit and the energy efficiency rating of small and medium-sized three-phase asynchronous motors . And the improvement of the efficiency in its design is in line with the state's requirements on the energy saving and consumption reducing of the manufacturing sector.

YE2 series motors with the mounting dimension in accordance with standard IEC60034,It has good features like optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class. YE2 series motors can be widely used in various kinds of general use machineries like fans, pumps, machine tools,compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry.

Frame sizes: 80-355

Rated output: 0.75-375 kW

Insulation class: F

Voltage:380V,400V,415V,440V or other voltage may be derived on request .

Duty cycle: S1

Degree of protection: IP54/IP55

Cooling type : IC411

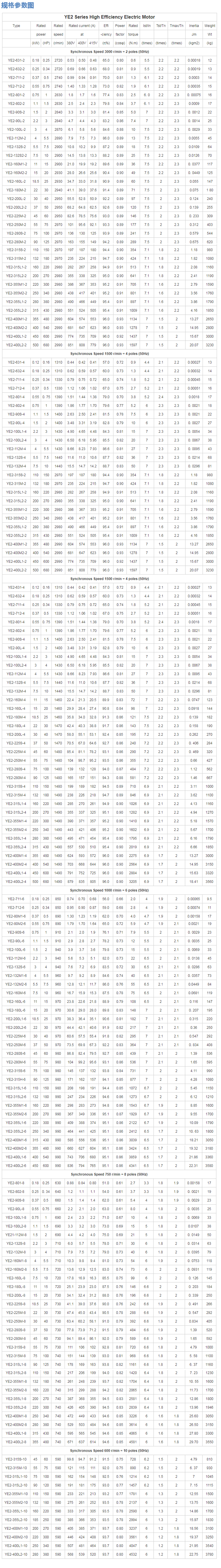

Parameters Table
