Product Description

The three-phase asynchronous AC motor（IE4） of the YE4 series is

in line with the high efficiency standard(IE4) in the provisions of GB

18613-2012 "the energy efficiency limit and the energy efficiency rating

of small and medium-sized three-phase asynchronous motors " . And the

improvement of the efficiency in its design is in line with the state's

requirements on the energy saving and consumption reducing of the manufacturing

sector.

YE4 series motors with the mounting dimension in accordance with standard IEC60034,It has good features like optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class. YE4 series motors can be widely used in various kinds of general use machineries like fans, pumps, machine tools ,compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry.

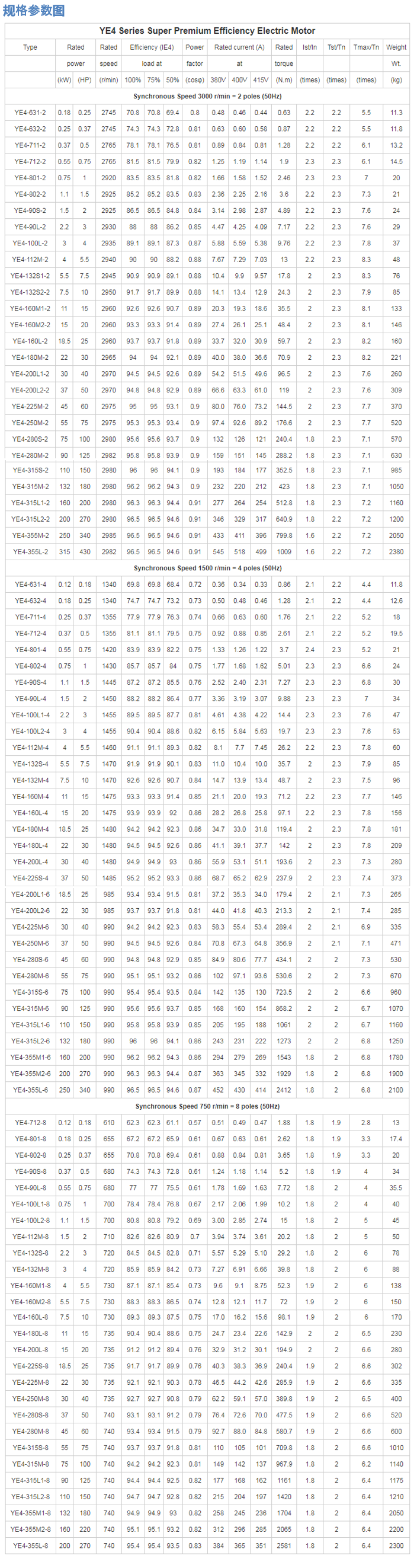

Efficiency level: IE4 super premium efficiency

Frame size: 63~400 frame

Rated output: 0.12~500kW, 0.16~675HP

Rated voltage: 220, 380, 400, 415, 440, 460, 480, 500, 550, 660, 690, 760 V

Rated frequency (speed):

50Hz (Synchronous speed 3000/1500/1000/750/600/500 r/min),

60Hz (Synchronous speed 3600/1800/1200/900/720/600 r/min)

No. of poles: 2, 4, 6, 8, 10, 12 Pole

Mounting methods: B3, B35, B5, V1

Material of housing: Cast iron (160 frame and below can be alloy-aluminum)

Insulation Class: F (155℃)

Temp. Rising: ΔT=80°K (B class)

Protection Class: IP44, IP54, IP55

Cooling: IC411 (Totally-enclosed, fan-cooled)

Bearing type: Roller/Ball bearing

Working Duty: S1 (Continuous)

Service Factor: 1.00

Ambient Temperature: -20°C ~ 40°C

Altitude: ≦1000 m.a.s.l

Ambient humidity: ≦90%

Lubricating: With grease system

Grounding lug: on the frame and terminal box

Metric Threaded Cable Entries on the Terminal Box

Customized frame size/power

Materiel of frame: Fabricated in welded steel plate frame

Shaft: Special dimensions, double shaft end, tapered, hollow as per request

Inverter/converter VFD application

Service Factor: 1.15 or above

Insulation Class: H (180℃)

Ambient temperature: Above 40 °C (on request)

Altitude: ＞1000M (on request)

Bearing: SKF, FAG, NSK, C&U brand

Grease lubricated bearings

Space heaters

Thermostats RTD

Thermal protection PTC

Temperature detector PT100

NDE or both DE and NDE bearing are electrically insulated

Special Winding, Voltage, Frequency

Cooling: IC416 Forced cooling by independent axial fan
