Product  Description :

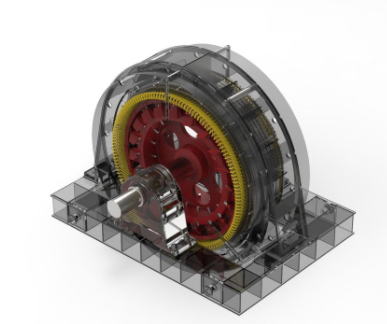

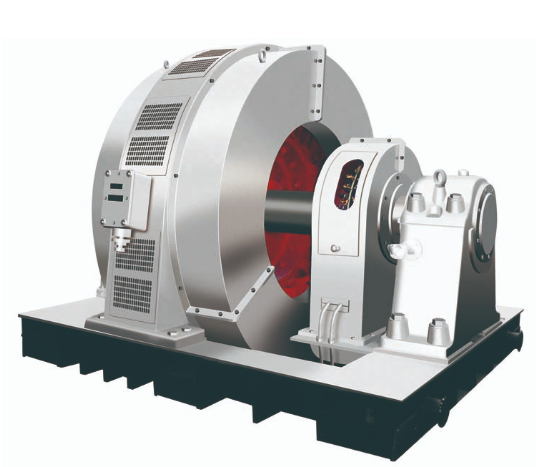

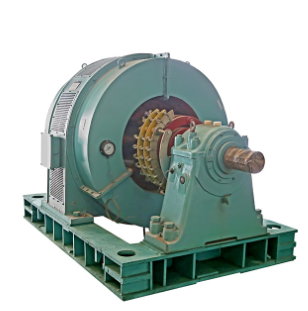

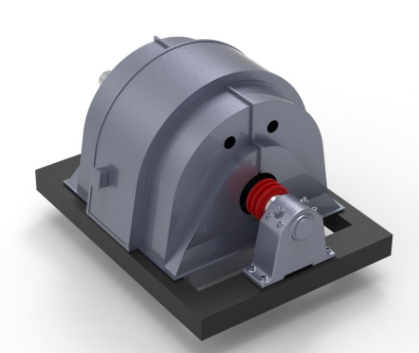

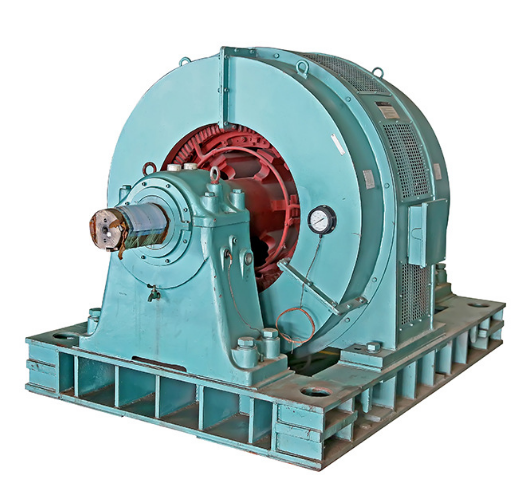

T, TK, TM series three-phase synchronous motors, one of series motor products in M&C company , are exported to various places of the world and are very popular among the users.

The series synchronous motors are made optimization design with computer in respect of design, adopt new materials and new process, and can meet various requirements of users. With the advantages like reliable performance , low temperature rise, small consumption, high efficiency , small vibration, large starting torque, simple structure, convenient maintenance, etc, the series motors can be used to drag compressor, crusher, ball mil , rolling mill, blower, water pump and other general machinery.

T--Synchronous Motor and TK--Synchronous Motor applied in Compressor, TM--Synchronous Motor Applied in Grinding mill.

Rated voltage: 3kV~11kV motors series with multiple voltage grades.

The motor can be started directly at full voltage or soft start at a lower voltage.

Power range: 200-12000kW

Pole number: 4-36

Speed: 187.5-1500r/min

Frame size:1730,1430,1180

Frequency: 50,60Hz,frequency conversion

Cooling method: IC37,IC81W,IC01

Protection grade: IP00,IP23,IP44,IP54,IP55

Mounting: IM7311
