Product Description

Product Description :

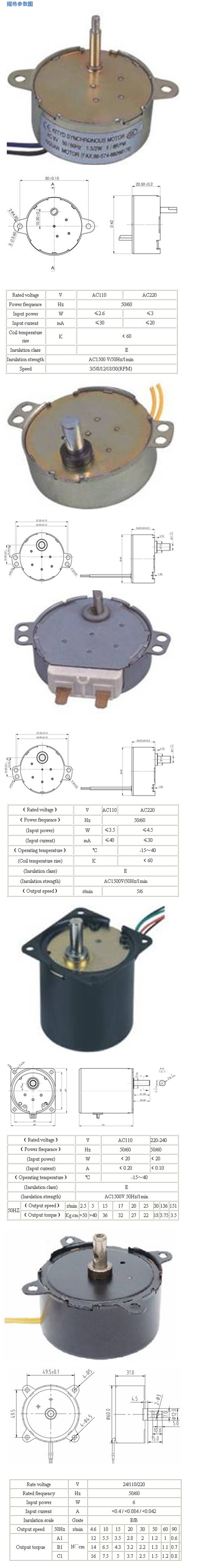

42SYZ Series Permanent Magnetic SynchronousMotor

Features :

※   Main as the power of light-guide fiber rotation light ,Christmas tree and small body handicraft articles etc.

※  This is a high torque motor to compare with other normal Synchronous motor.

※  Voltage can be any value during the range of 12VAC to 240VAC.

※  The gearbox is separate from the motor. There is a pinion equipped to the motor output shaft.

This pinion can be any size as the customer’s need.

※  Motor rotation: freely (sometimes in CW direction, sometimes in CCW direction. It is decided

by the motor itself. But if the customer needs the motor to run just in 1 direction (such as CW or CCW),

we need to add a directional plate. In this case, the motor rotation is directional.

※  Long lifetime (more than 8000 hours), low noise [≤45dB(A)], low vibration, low temperature rising

(≤60K).

Specification: (The following specifications can be changed as your requirement)

49SYZ-B Series Permanent Magnetic Synchronous motor

Features:

※  Main as the power of microwave ,conditioner warmer and other constant speed

drive devices. etc.

※  This is a high torque motor to compare with other normal synchronous motors.

※  Voltage can be any value during the range of 12VAC to 240VAC.

※  The gearbox is separate from the motor. There is a pinion equipped to the motor output shaft.

This pinion can be any size as the customer’s need.

※  Motor rotation: freely (sometimes in CW direction, sometimes in CCW direction.

It is decided by the motor itself. But if the customer needs the motor to run just in 1 direction

(such as CW or CCW), we need to add a directional plate. In this case, the motor rotation

is directional.

※  Long lifetime (more than 8000 hours), low noise [≤45dB(A)], low vibration, low

temperature rising (≤60K)

Specification: (The following specifications can be changed as your requirement)

60SYZ-A Series Permanent Magnetic Synchronous Motor

Features:

※  Main as Auto gambling table/laminator/Outdoor Auto Control Machine/Monitor /Manufacture ice machineetc.

※  This is a high torque motor to compare with other normal synchronous motors.

※  The gearbox is separate from the motor. There is a pinion equipped to the motor output shaft.

This pinion can be any size as the customer’s need.

※  Motor rotation: freely (sometimes in CW direction, sometimes in CCW direction. It is decided by the motor itself. But if the customer needs the motor to run just in 1 direction (such as CW or CCW), we need to add a directional plate. In this case, the motor rotation is directional.

※  Long lifetime (more than 8000 hours), low noise [≤45dB(A)], low vibration, low temperature rising (≤60K).

Specification: (The following specifications can be changed as your requirement)

60SYZ-A Series Permanent Magnetic Synchronous Motor

Features:

※  Main as Auto gambling table/laminator/Outdoor Auto Control Machine/Monitor /Manufacture ice machineetc.

※ This is a high torque motor to compare with other normal synchronous motors.

※ The gearbox is separate from the motor. There is a pinion equipped to the motor output shaft.

This pinion can be any size as the customer’s need.

※ Motor rotation: freely (sometimes in CW direction, sometimes in CCW direction.

It is decided by the motor itself. But if the customer needs the motor to run just in 1 direction

(such as CW or CCW), we need to add a directional plate. In this case, the motor rotation is directional.

※  Long lifetime (more than 8000 hours), low noise [≤45dB(A)], low vibration, low temperature rising

(≤60K)

Specification: (The following specifications can be changed as your requirement)

60SYZ-B Series Permanent Magnetic Synchronous Motor

Features:

※  Main as HVAC systems ,Household appliances, Instrument and meter, Rotating lamps etc.

※  A1 type is used for continuous running motors.

※  B1 type is used for uncontinuous running motors.(work time ：10min)

※  C1 type is used for uncontinuous running motors.(work time：5min)

Specification: (The following specifications can be changed as your requirement)
