Product Description

Ac 120V 220V synchronous motor 4W large torque TY50 reducer motor

Application: electric fireplace; Heater / microwave /Valve motor /fan motor / light box motor,Popco machine/fans, coffee machines, air conditioners, ice machines, Christmas trees, rotating light box advertising, meat grinder,atmosphere lights, starry lights and other constant speed rotating products.

Product introduction

This product is integrated by a permanent magnet synchronous motor and reduction gearbox. With features of low power consumption, high torque, low noise, small size, light weight, easy to use.

At rated frequency, motor speed is not affected by voltage. If overload or stall when load, the motor coil will not burn!

There are three directions of rotation to choose from :CW,CCW, and CW/CCW

Note：When the rotation direction is CW/CCW, the load reaches the rated torque, the electric machine will automatically reverse.

Note：Please leave a message to tell us your choice of voltage, direction of rotation (CW / CCW;CW; CCW three type) and shaft type and size.

For example：220v,50Hz（or 60Hz），2.5/3 RPM, CW, Type: TS

Note：this motor is AC synchronous motor .

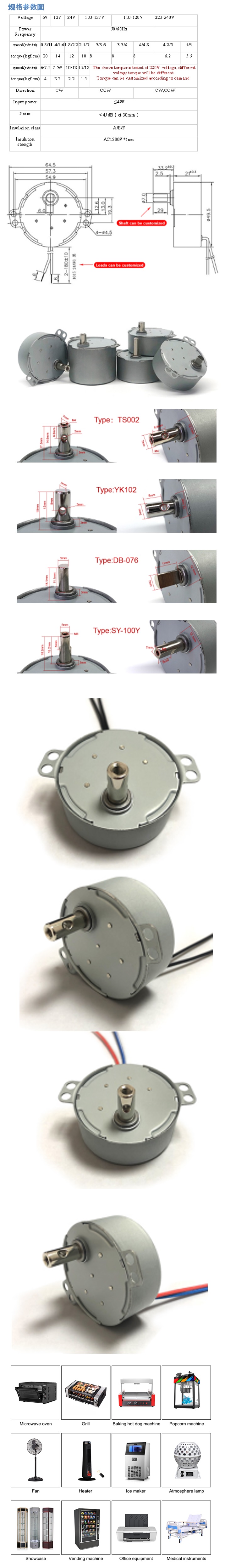

Please see the parameter table, for example you choose 2.5/3r/min.

If your country's frequency is 50Hz, the motor rotation speed is 2.5rpm/min.

If your country's frequency is 60Hz, the motor rotation speed is 3rpm/min

Customized ServiceWe can customize various shafts, terminal , speed, torque, lead，etc. according to your requirements. Please send an inquiry or TM to tell us.

TY-50A

Used for fans, coffee machines, air conditioners, ice machines, Christmas trees, rotating light box advertising, meat grinder,atmosphere lights, starry lights and other constant speed rotating products.

TY-50F

Used for oven, grill, electric heater, microwave oven, electric fireplace and other high temperature products.

TYK50

Used for curtain, projector, monitoring, awning, electric valve, medical bed, electric seat and other products that need to control the direction of rotation.

Product application
