Product Description

1.8Deg Nema 14 Stepper Motor

PRODUCT DETAILS

Model: 2 Phase Hybrid Nema14 Stepper Motor 35x35mm -35HS( 1.8 degree)

Hybrid stepper motors are widely used in so many machines that used every day personally or commercially. Also it is used in ticketing machines, medical devices, ATM machines, printing machines, and food grinding machines, surveillance devices, consumer electronics, and so much more.What's more is that it offers longer life expectancy as it does not use brushes. The absence of brushes makes it operational for longer hours up to 7,000 hours at the least.Hybrid stepper motors is a combination of both permanent magnet and variable reluctance; thus, making a single device even more practical, convenient, and powerful and the two types. In just a small-sized component, you can get maximum power as the uses of both types are integrated into one device.

· Holding torque up to 26 Oz-in (0.18 Nm)

· 0.9° or 1.8° Step angle +- 5%

· Operating temperature: -20°C ~ 50°C

· Bipolar 4 wires & Unipolar 6 wires

· Optional: encoder feedback, planetary gearbox, linear stepper, double shaft, custom shaft and mounting flange.

HQmotor offer two product lines of NEMA 14 size (35mm square) stepper motors, 35HSM28 with 0.9 degree step angles (400 steps per revolution) and 35HS20 with 1.8 degree (200 steps per revolution) . Each product line has single shaft and double shaft motor versions. The motor body is between 20mm and 34mm. GEMS also supply NEMA 14 linear stepper motor with custom lead screw. NEMA 14 needs less space and usually weights less than a NEMA 17, allowing its use on some small medical instrument and printers.

Product Name: Nema 14 Stepper Motor

Step Angle: 1.8 Degree

Size: 35x35mm Stepping Motor

Current / Phase: 0.5A / 1A

Holding Torque: 1000g.cm - 2000g.cm

Leads No.: 4leads

Motor Length: 28mm / 34mm / 42mm

Product Type: 2 Phase Hybrid Step Motor

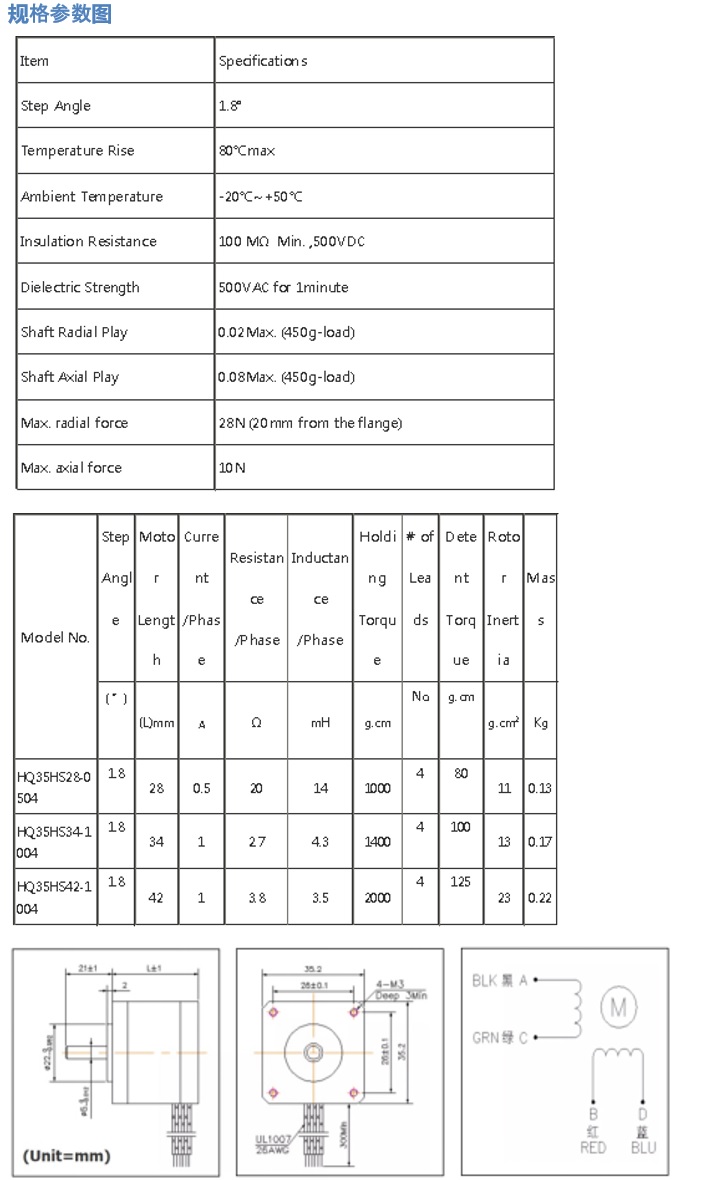

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
