Product Description

1.8Deg Nema 16 Stepper Motor

PRODUCT DETAILS

Model: 39mm Nema 16 2 Phase Hybrid / Biplor Stepper Motor 39x39mm -39HY(1.8 degree)

Product Name: 1.8degree 39mm Hybrid Stepping Motor

Type: 2 Phase Stepper Motor

Size: 39x39mm Step Motor

Current / Phase: 0.3A / 0.4A / 0.5A / 0.8A

Holding Torque: 650g.cm - 2800g.cm

Leads No.: 4leads or 6leads

Motor Length: 20mm / 34mm / 38mm / 44mm

Product Type: Biplor Nema 16 Stepper Motor

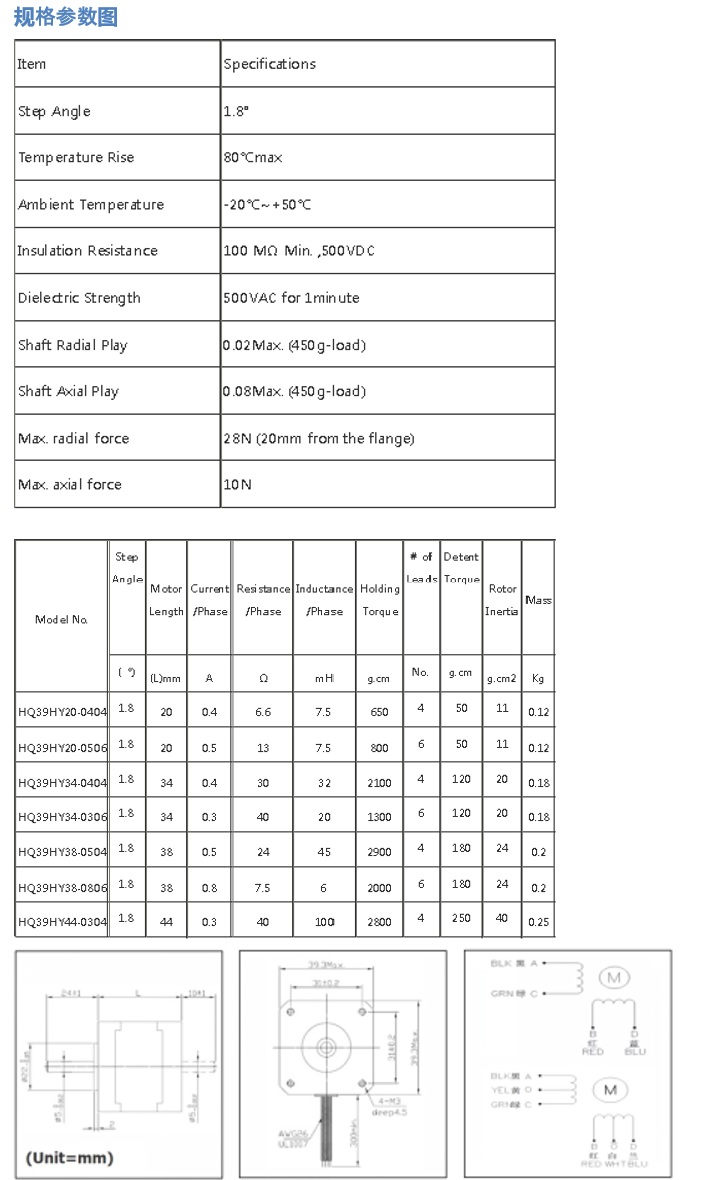

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Product Parameters:

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
