Product Description

1.8Deg Nema 17 Stepper Motor

PRODUCT DETAILS

Model: 1.8 Deg 17HS4401 / 42BYG250 Nema 17 Hybrid / Biplor Stepper Motor 42x42mm for XYZ 3D Printer -42HS(1.8 degree)

Product Name: 1.8degree 42mm Nema 17 Stepper Motor

Model Name: 17HS4401 Step motor / 42BYG250 / 42BYG250AK / 42BYG250BK / 42BYG250CK

Size: 42x42mm Stepping Motor

Current / Phase: 0.4A ~ 1.7A

Holding Torque: 1.5kg.cm - 7.3kg.cm

Leads No.: 4-leads or 6-leads

Motor Length: 25mm / 28mm / 34mm / 40mm / 48mm / 60mm

Product Type: 2 Phase Biplor Stepper Motor

Type: 3d Printer Step Motor / Hybrid Stepping Motor

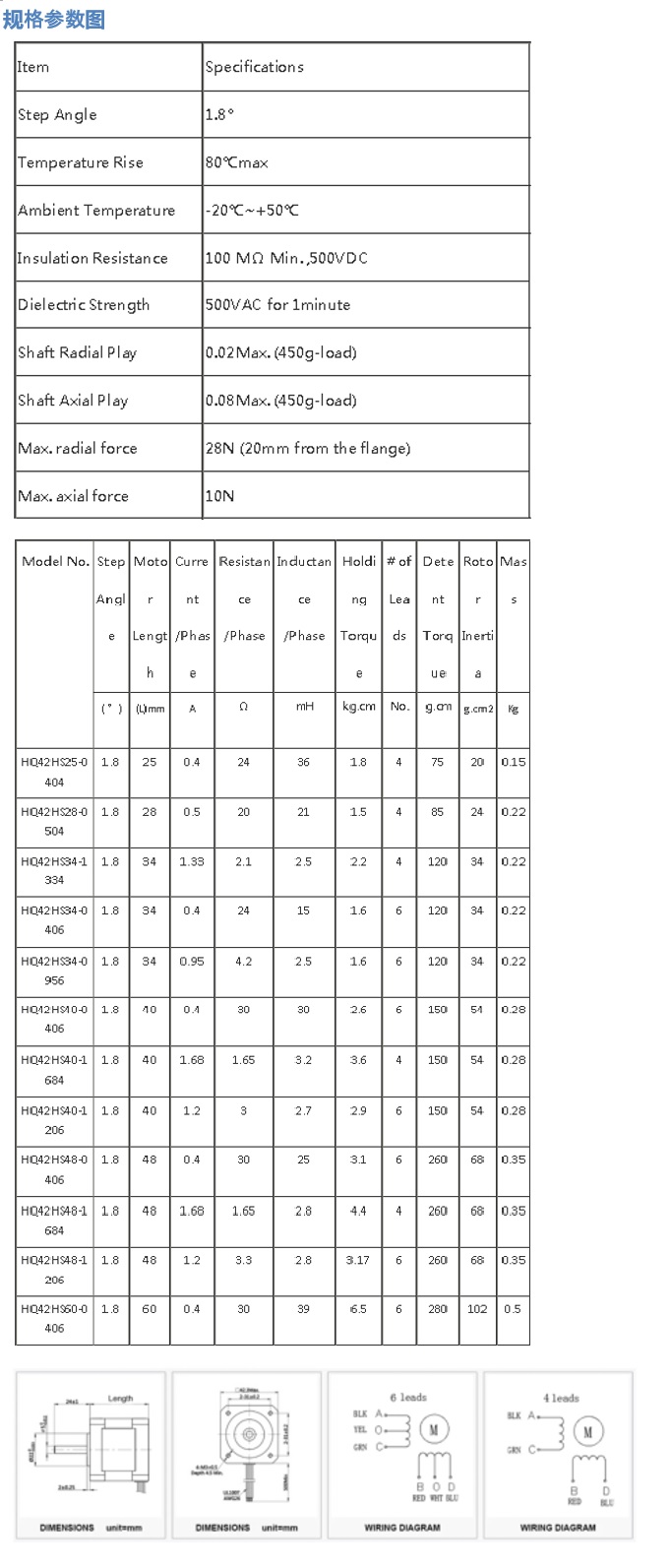

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Product Parameters:

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
