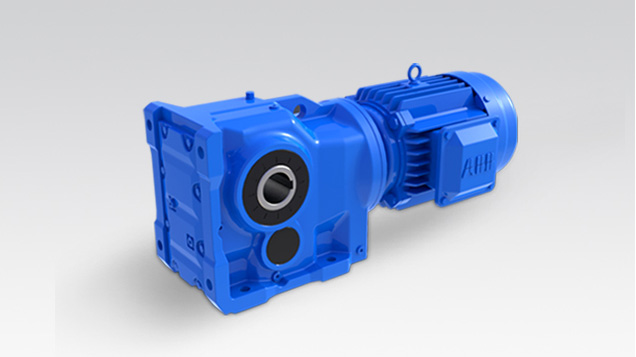

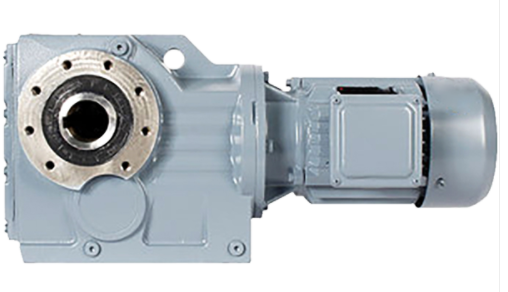

K Series Gearmotors
Output torque: up to 50000Nm
Motor power: 0.18~200kw
Input form: directly connected with motor, flange input or shaft input.
Product Description
Product Description :
K series helical-bevel gear motor Main Parameter:
Output speed: 0.15~270rpm
Output torque: up to 50000Nm
Motor power: 0.18~200kw
Input form: directly connected with motor, flange input or shaft input.
Installation Form: Horizontal, Vertical horizontal type bottom threaded hole, case end face threaded hole installation. Small flange installation, torque arm installation
Product features:
1. K series helical-bevel gear motor is the combination transmission structure of helical gears and spiral bevel gears, with large transmission torque and steady running
2. Little vibration and low noise, with large transmission ratio, the transmission efficiency is much higher than SC series.
3. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° after tempering, cementing, quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5.
4. The products have been mainly used in petrochemical machinery, metallurgy, printing and packaging machinery, ceramic machinery, mine and construction machinery, stage machinery ,etc.
