Product Description :

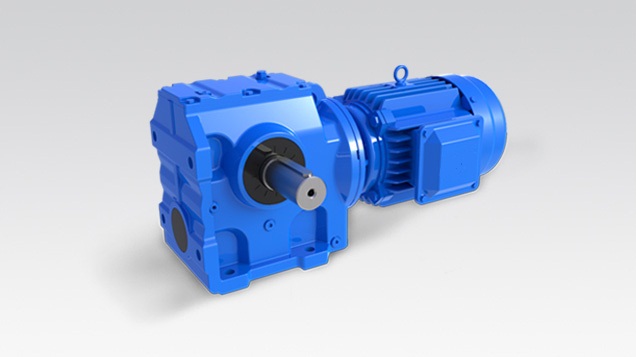

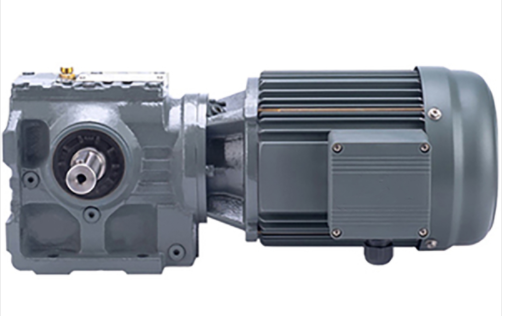

S series helical-worm gear motor Main Parameter:
Output speed: 0.1~120rpm
Output torque: up to 10200Nm
Motor power: 0.18~37kw
Input form: directly connected with motor, flange input or shaft input.
Installation Form: Horizontal, Vertical,
horizontal type bottom threaded hole, case end face threaded hole installation,
small flange installation, torque arm installation,
case end face male half coupling installation

 Product features:

1. S series helical-worm gear motor is the combination transmission structure of helical gears and worm wheels ,right angle shaft output and steady running.
2. Little vibration and low noise, with large transmission ratio, the transmission efficiency is lower than helical gear motor.
3. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62 after tempering , cementing , quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5°.
4. The products have been mainly used in petrochemical machinery, mine and construction machinery, metallurgy, printing and packaging machinery, etc.
